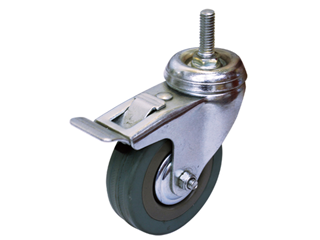

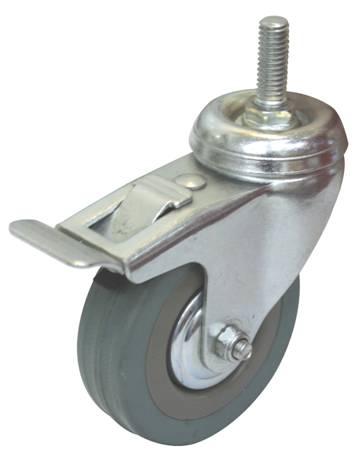

I04 Gray Rubber Casters
I04
|
|
|
| Mechanical specifications |

I04— GRAY
RUBBER CASTERS
※
WHEEL MATERIAL
–
GR – GRAY RUBBER
–
PVC
※
HOUSING MATERIAL
–
STEEL
※
BRAKE OPTIONS
l
SL – SINGLE LOCK
l
DL – DIRETION LOCK
l
TL – TOTAL LOCK
※
STEM OPTIONS
l
GR – GRIP RING
l
TS – THREADED STEM
l
BH – BOLT HOLE
l
P – PLATE
※
FINISH OPTIONS
l
ZINC PLATE
l
CHROME
l
NICKEL
※
TOP PLATE
|
Diameter
(mm)
|
 SWIVEL
|
FIXED
|
|
50
|
50 X 50
|
38 X 38
|
65 X 50
|
45 X 33
|
|
75
|
65 X 65
|
52 X 52
|
100 X 59
|
81 X 40
|
|
100
|
76 X 76
|
60 X 60
|
100 X 59
|
81 X 40
|
|
125
|
76 X 76
|
60 X 60
|
100 X 59
|
81 X 40
|
|
Diameter
(mm)
|
Tread Width
(mm)
|
Load
(kgs)
|
Load Height
(mm)
|
Material
|
SWIVEL No.
|
FIXED No.
|
BEARING TYPE
|
|
50
|
17
|
35
|
68
|
GRAY RUBBER
|
I04S50-GR
|
I04F50-GR
|
PLAIN
|
|
PVC
|
I04S50-PVC
|
I04F50-PVC
|
|
75
|
21
|
45
|
100
|
GRAY RUBBER
|
I04S75-GR
|
I04F75-GR
|
PLAIN
|
|
PVC
|
I04S75-PVC
|
I04F75-PVC
|
|
100
|
27
|
65
|
132
|
GRAY RUBBER
|
I04S100-GR
|
I04F100-GR
|
PLAIN
|
|
PVC
|
I04S100-PVC
|
I04F100-PVC
|
|
125
|
27
|
80
|
155
|
GRAY RUBBER
|
I04S125-GR
|
I04F125-GR
|
PLAIN
|
|
PVC
|
I04S125-PVC
|
I04F125-PVC
|
|
Diameter
(inch)
|
Tread Width
(inch)
|
Load
(lbs)
|
Load Height
(inch)
|
Material
|
SWIVEL No.
|
FIXED No.
|
BEARING TYPE
|
|
2
|
11/16
|
85
|
2-5/8
|
GRAY RUBBER
|
I04S2-1116-GR
|
I04F2-1116-GR
|
PLAIN
|
|
PVC
|
I04S2-1116-PVC
|
I04F2-1116-PVC
|
|
3
|
13/16
|
130
|
4
|
GRAY RUBBER
|
I04S3-1316-GR
|
I04F3-1316-GR
|
PLAIN
|
|
PVC
|
I04S3-1316-PVC
|
I04F3-1316-PVC
|
|
4
|
1
|
155
|
5-3/16
|
GRAY RUBBER
|
I04S4-GR
|
I04F4-GR
|
PLAIN
|
|
PVC
|
I04S4-PVC
|
I04F4-PVC
|
|
5
|
1
|
200
|
6-1/8
|
GRAY RUBBER
|
I04S5-GR
|
I04F5-GR
|
PLAIN
|
|
PVC
|
I04S5-PVC
|
I04F5-PVC
|
|
