Product Overview

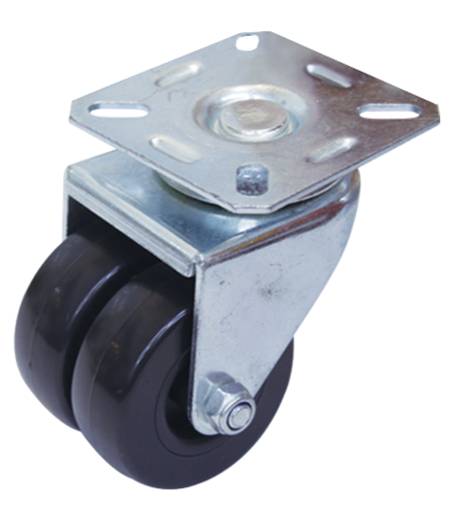

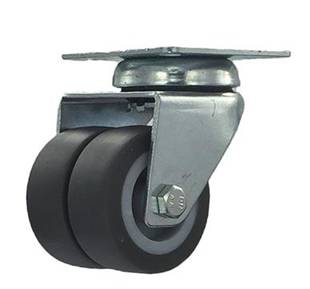

I02 Dual Wheel Casters
I02

Mechanical specifications





I02— DUAL WHEEL CASTERS

         WHEEL MATERIAL

            PP – POLYPROPYLENE

            TPR – THERMOPLASTIC RUBBER on PP CORE

            GR – GRAY RUBBER

            HR – HARD RUBBER

         HOUSING MATERIAL

            STEEL

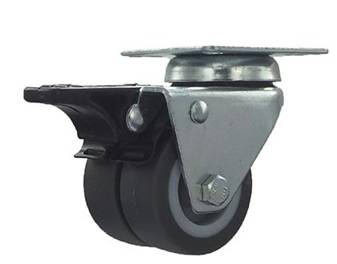

         BRAKE OPTIONS

             DL – DIRETION LOCK

             TL – TOTAL LOCK

         STEM OPTIONS

             GR – GRIP RING

             TS – THREADED STEM

             BH – BOLT HOLE

             P – PLATE

         FINISH OPTIONS

             ZINC PLATE

             CHROME

             NICKEL

       TOP PLATE

Diameter

(mm)

    SWIVEL

50

65 X 65

45 X 45

75

75 X 75

56 X 56



Diameter

(mm)

Tread Width

(mm)

Load

(kgs)

Load Height

(mm)

Material

SWIVEL No.

BRAKE No.

BEARING TYPE

50

40

70

65

PP

I02S50-PP

I02DL50-PP

PLAIN

TPR

I02S50-TPR

I02DL50-TPR

GRAY RUBBER

I02S50-GR

I02DL50-GR

HARD RUBBER

I02S50-HR

I02DL50-HR

75

50

100

93

PP

I02S75-PP

I02DL75-PP

PLAIN

TPR

I02S75-TPR

I02DL75-TPR

GRAY RUBBER

I02S75-GR

I02DL75-GR

HARD RUBBER

I02S75-HR

I02DL75-HR



Diameter

(inch)

Tread Width

(inch)

Load

(lbs)

Load Height

(inch)

Material

SWIVEL No.

FIXED No.

BEARING TYPE

2

1-1/2

155

2-9/16

PP

I02S2-12-PP

I02DL2-12-PP

PLAIN

TPR

I02S2-12-TPR

I02DL2-12-TPR

GRAY RUBBER

I02S2-12-GR

I02DL2-12-GR

HARD RUBBER

I02S2-12-HR

I02DL2-12-HR

3

2

220

3-5/8

PP

I02S3-PP

I02DL3-PP

PLAIN

TPR

I02S3-TPR

I02DL3-TPR

GRAY RUBBER

I02S3-GR

I02DL3-GR

HARD RUBBER

I02S3-HR

I02DL3-HR
