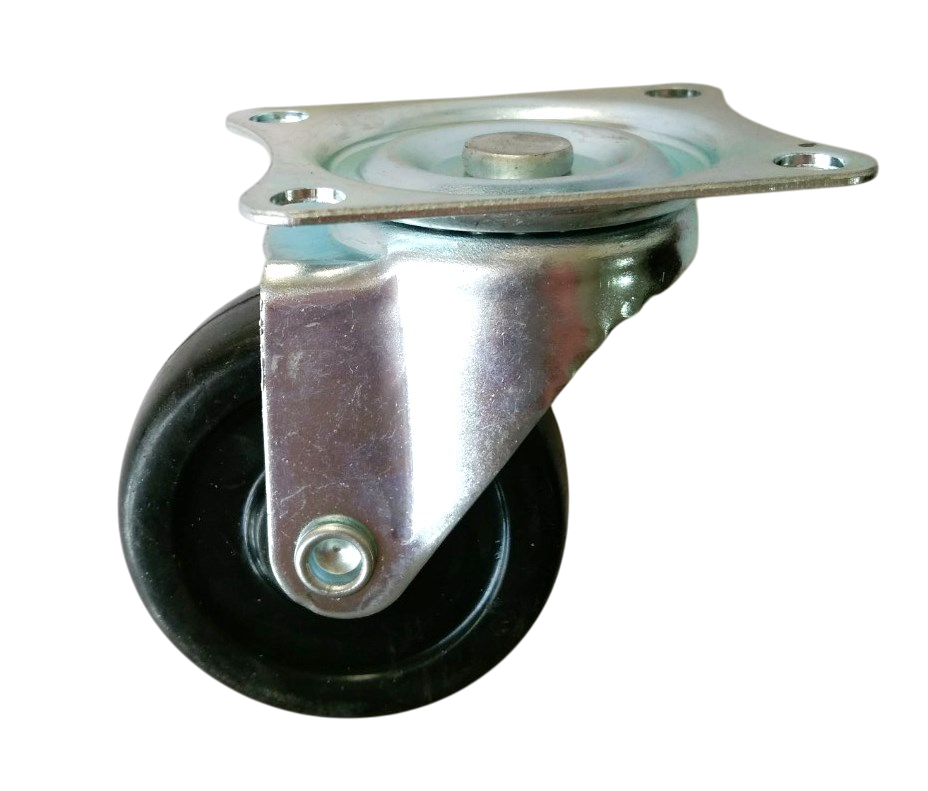

I01— SINGLE
WHEEL CASTERS
※
WHEEL MATERIAL
–
PP – POLYPROPYLENE
–
SR – SOFT RUBBER
–
HR – HARD RUBBER
※
HOUSING MATERIAL
–
STEEL
※
BRAKE OPTIONS
–

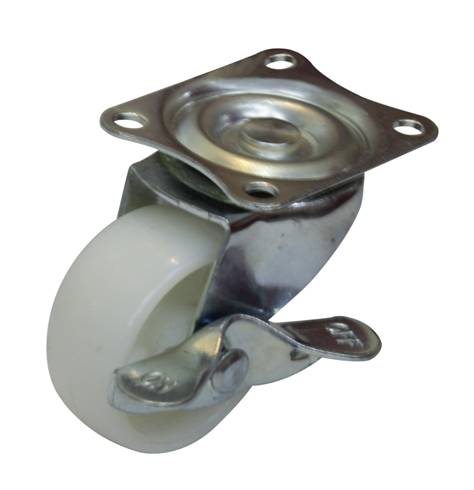

BL – SIDE LOCK (Butterfly Brake)
※
BERING OPTIONS
–
SINGLE BALL BEARING RACEWAY
–
DOUBLE BALL BEARING RACEWAY for GRIP RING STEM
TYPE ,
and THREADED STEM TYPE
※
STEM OPTIONS
–
GR – GRIP RING
–
TS – THREADED STEM
–
P – PLATE
※
FINISH OPTIONS
–
ZINC PLATE
–
CHROME
–
NICKEL
※
TOP PLATE
|
Diameter
(mm)
|
 SWIVEL
|
FIXED
|
|
25
|
38 X 32
|
30 X 24
|
37 X 20
|
29 X 20
|
|
30
|
38 X 32
|
30 X 24
|
37 X 20
|
29 X 20
|
|
40
|
46 X 38
|
36 X 28
|
46 X 25
|
36 X 15
|
|
50
|
59 X 47
|
45 X 35
|
60 X 42
|
45 X 25
|
|
65
|
70 X 58
|
55 X 42
|
70 X 46
|
56 X 27
|
|
75
|
70 X 58
|
55 X 42
|
70 X 46
|
56 X 27
|
|
Diameter
(mm)
|
Tread Width
(mm)
|
Load
(kgs)
|
Load Height
(mm)
|
Material
|
SWIVEL No.
|
FIXED No.
|
BEARING TYPE
|
|
25
|
12
|
10
|
35
|
PP
|
I01S25-PP
|
I01F25-PP
|
PLAIN
|
|
SOFT RUBBER
|
I01S25-SR
|
I01F25-SR
|
|
HARD RUBBER
|
I01S25-HR
|
I01F25-HR
|
|
30
|
14
|
15
|
42
|
PP
|
I01S30-PP
|
I01F30-PP
|
PLAIN
|
|
SOFT RUBBER
|
I01S30-SR
|
I01F30-SR
|
|
HARD RUBBER
|
I01S30-HR
|
I01F30-HR
|
|
40
|
17
|
25
|
50
|
PP
|
I01S40-PP
|
I01F40-PP
|
PLAIN
|
|
SOFT RUBBER
|
I01S40-SR
|
I01F40-SR
|
|
HARD RUBBER
|
I01S40-HR
|
I01F40-HR
|
|
50
|
20
|
35
|
65
|
PP
|
I01S50-PP
|
I01F50-PP
|
PLAIN
|
|
SOFT RUBBER
|
I01S50-SR
|
I01F50-SR
|
|
HARD RUBBER
|
I01S50-HR
|
I01F50-HR
|
|
65
|
25
|
45
|
80
|
PP
|
I01S65-PP
|
I01F65-PP
|
PLAIN
|
|
SOFT RUBBER
|
I01S65-SR
|
I01F65-SR
|
|
HARD RUBBER
|
I01S65-HR
|
I01F65-HR
|
|
75
|
25
|
55
|
90
|
PP
|
I01S75-PP
|
I01F75-PP
|
PLAIN
|
|
SOFT RUBBER
|
I01S75-SR
|
I01F75-SR
|
|
HARD RUBBER
|
I01S75-HR
|
I01F75-HR
|
|
Diameter
(inch)
|
Tread Width
(inch)
|
Load
(lbs)
|
Load Height
(inch)
|
Material
|
SWIVEL No.
|
FIXED No.
|
BEARING TYPE
|
|
1
|
1/2
|
20
|
1-3/8
|
PP
|
I01S1-12-PP
|
I01F1-12-PP
|
PLAIN
|
|
SOFT RUBBER
|
I01S1-12-SR
|
I01F1-12-SR
|
|
HARD RUBBER
|
I01S1-12-HR
|
I01F1-12-HR
|
|
1-1/4
|
9/16
|
30
|
1-5/8
|
PP
|
I01S114-916-PP
|
I01F114-916-PP
|
PLAIN
|
|
SOFT RUBBER
|
I01S114-916-SR
|
I01F114-916-SR
|
|
HARD RUBBER
|
I01S114-916-HR
|
I01F114-9116-HR
|
|
1-1/2
|
11/16
|
50
|
2
|
PP
|
I01S112-1116-PP
|
I01F112-1116-PP
|
PLAIN
|
|
SOFT RUBBER
|
I01S112-1116-SR
|
I01F112-1116-SR
|
|
HARD RUBBER
|
I01S112-1116-HR
|
I01F112-1116-HR
|
|
2
|
13/16
|
70
|
2-9/16
|
PP
|
I01S2-1316-PP
|
I01F2-1316-PP
|
PLAIN
|
|
SOFT RUBBER
|
I01S2-1316-SR
|
I01F2-1316-SR
|
|
HARD RUBBER
|
I01S2-1316-HR
|
I01F2-1316-HR
|
|
2-1/2
|
1
|
100
|
3-1/8
|
PP
|
I01S212-1-PP
|
I01F212-1-PP
|
PLAIN
|
|
SOFT RUBBER
|
I01S212-1-SR
|
I01F212-1-SR
|
|
HARD RUBBER
|
I01S212-1-HR
|
I01F212-1-HR
|
|
3
|
1
|
120
|
3-9/16
|
PP
|
I01S3-1-PP
|
I01F3-1-PP
|
PLAIN
|
|
SOFT RUBBER
|
I01S3-1-SR
|
I01F3-1-SR
|
|
HARD RUBBER
|
I01S3-1-HR
|
I01F3-1-HR
|
